Unified Reader wiring diagrams and examples

May 19, 2025 14:33
Updated

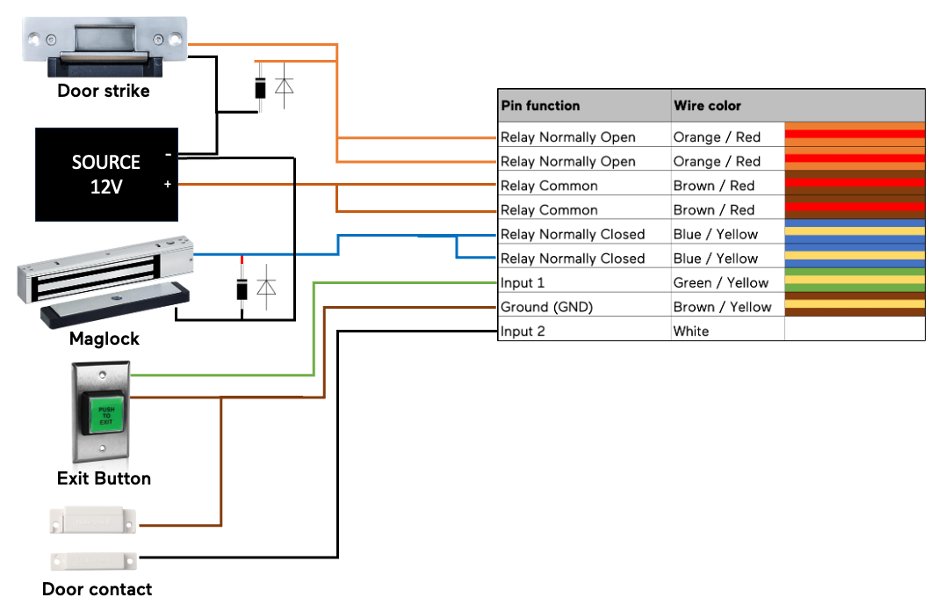

Wiring chart

Wiring example
