A third party Wiegand or OSDP Reader can be connected to the UR to enable card credentials from that Reader to be sent to the UR. These credentials must be associated with Anavio users to enable their access to the door to which the UR is connected.

Hardware setup

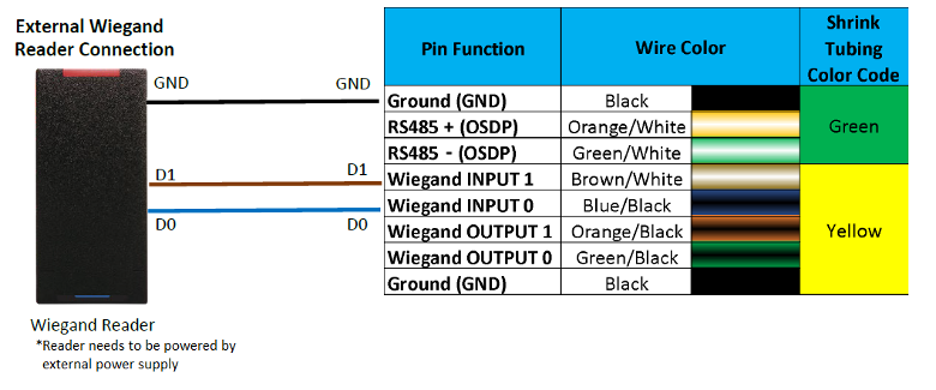

Third party Wiegand reader

Wire the third party Reader to the UR’s Wiegand Input 1, Input 0 and Ground.

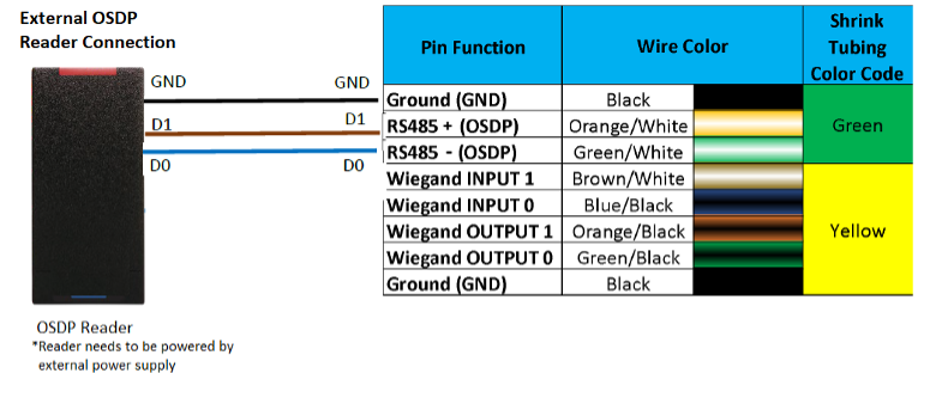

Third party OSDP reader

Wire the third party Reader to the UR’s RS485 +, RS485 -, and Ground.

Software setup

Click on the Devices and select Doors. Select a door associated to the UR that the third party Reader is also connected to.

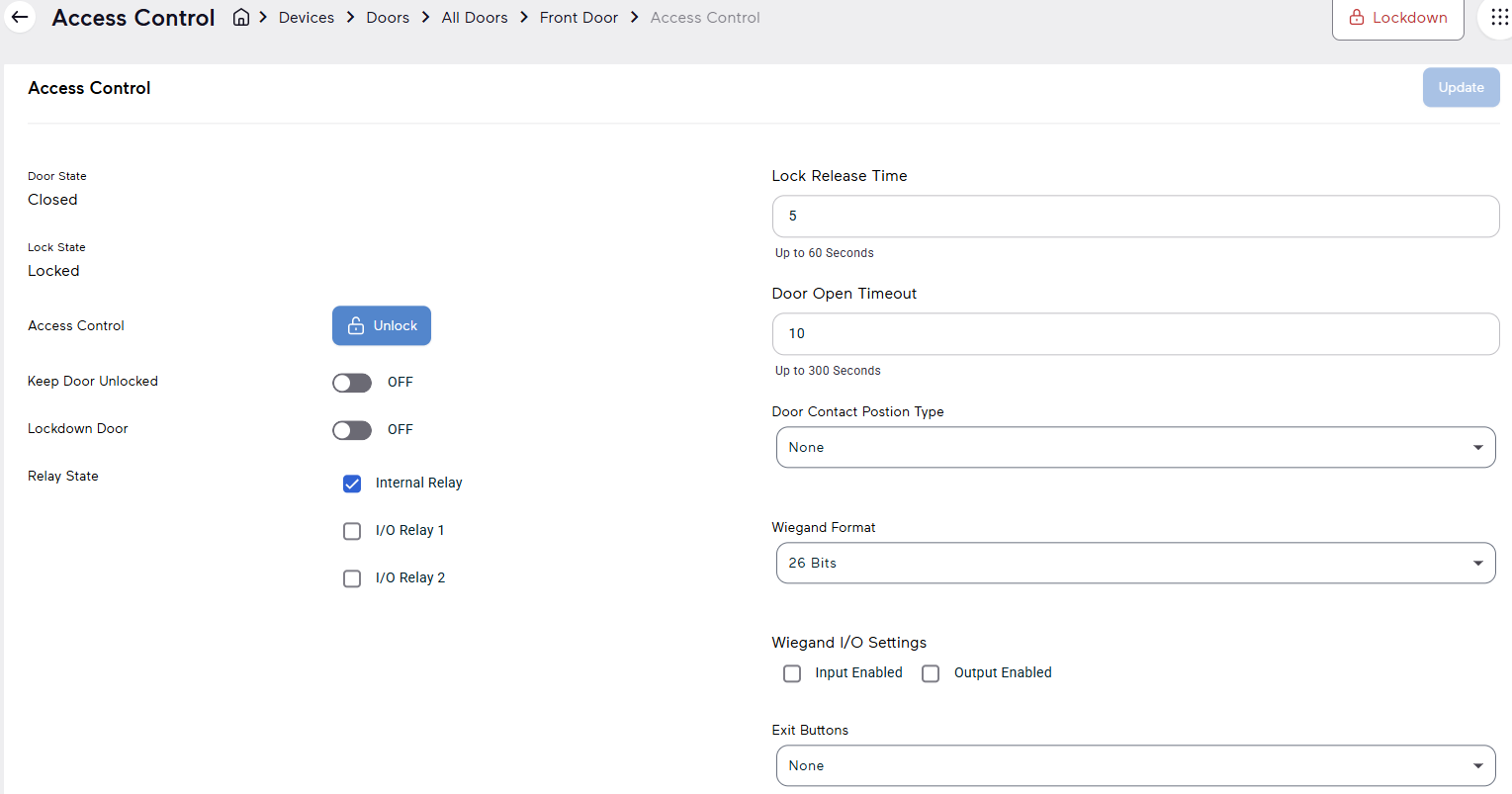

Click on the Settings gear icon to display Door Information. Select Access Control tab and scroll down to Wiegand I/O Settings and check “Wiegand Input Enabled”.

To use a card credential on a third party Wiegand or OSDP reader that is connected to a UR, there must be a user to which that card credential is associated; if there is not an existing user, then a new user must be created in.

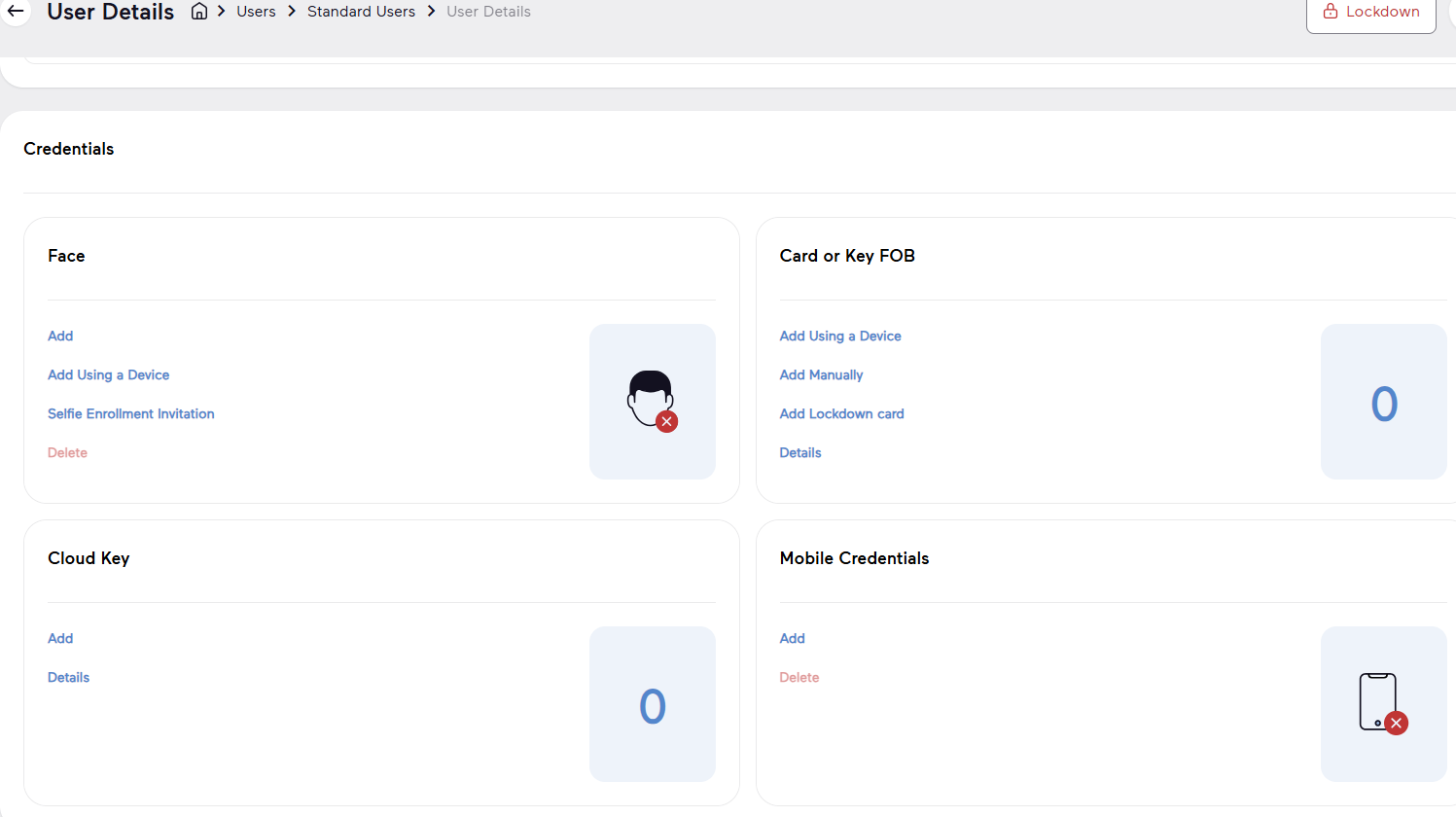

Click the menu button and select Users to select an existing user or to add a new user. Scroll to the bottom and click on Add Manually under the Card or Key FOB section.

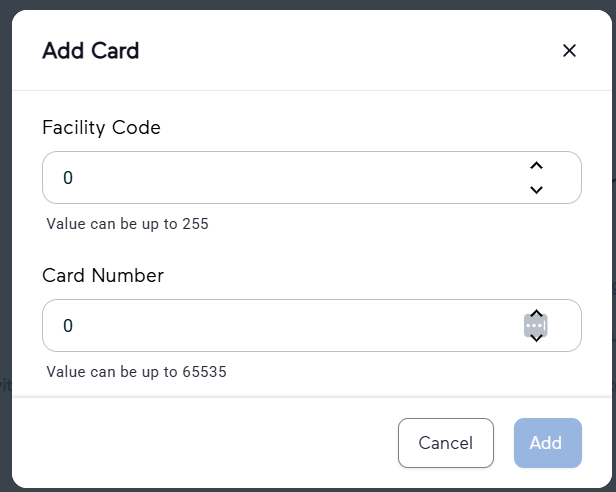

Enter the card credential’s Facility Code (Site ID) and Card Number.
